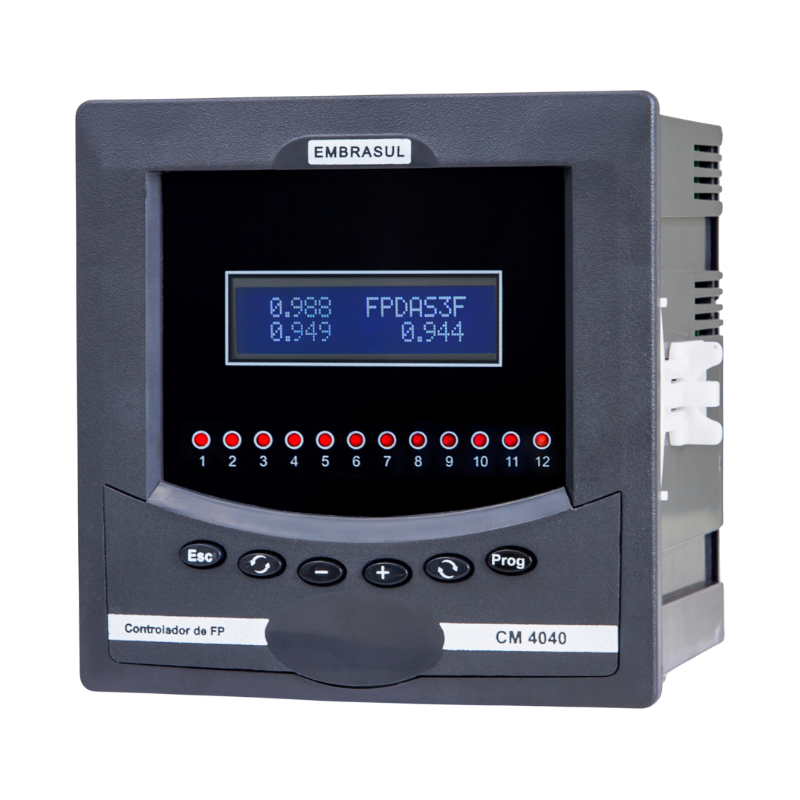

Controlador de Fator de Potência

CM4040-GESCAP


Controle do acionamento de bancos de capacitores para correção de fator de potência​;

Redução de custos através da eliminação e diminuição de multas e perdas por baixo fator de potência e excedentes reativos​;

Aumento da vida útil de capacitores, equipamentos e instalação​;

Aumento da eficiência energética e melhor aproveitamento da potência para expansões​;

Bloqueio capacitivo contra sobretensão, e banco fixo para correção de transformador a vazio​;

Saída dedicada para alarmes de tensão, corrente, e DHT​;

Aumento da disponibilidade e segurança com a diminuição da corrente reativa, redução do efeito Joule e melhoria da tensão.
